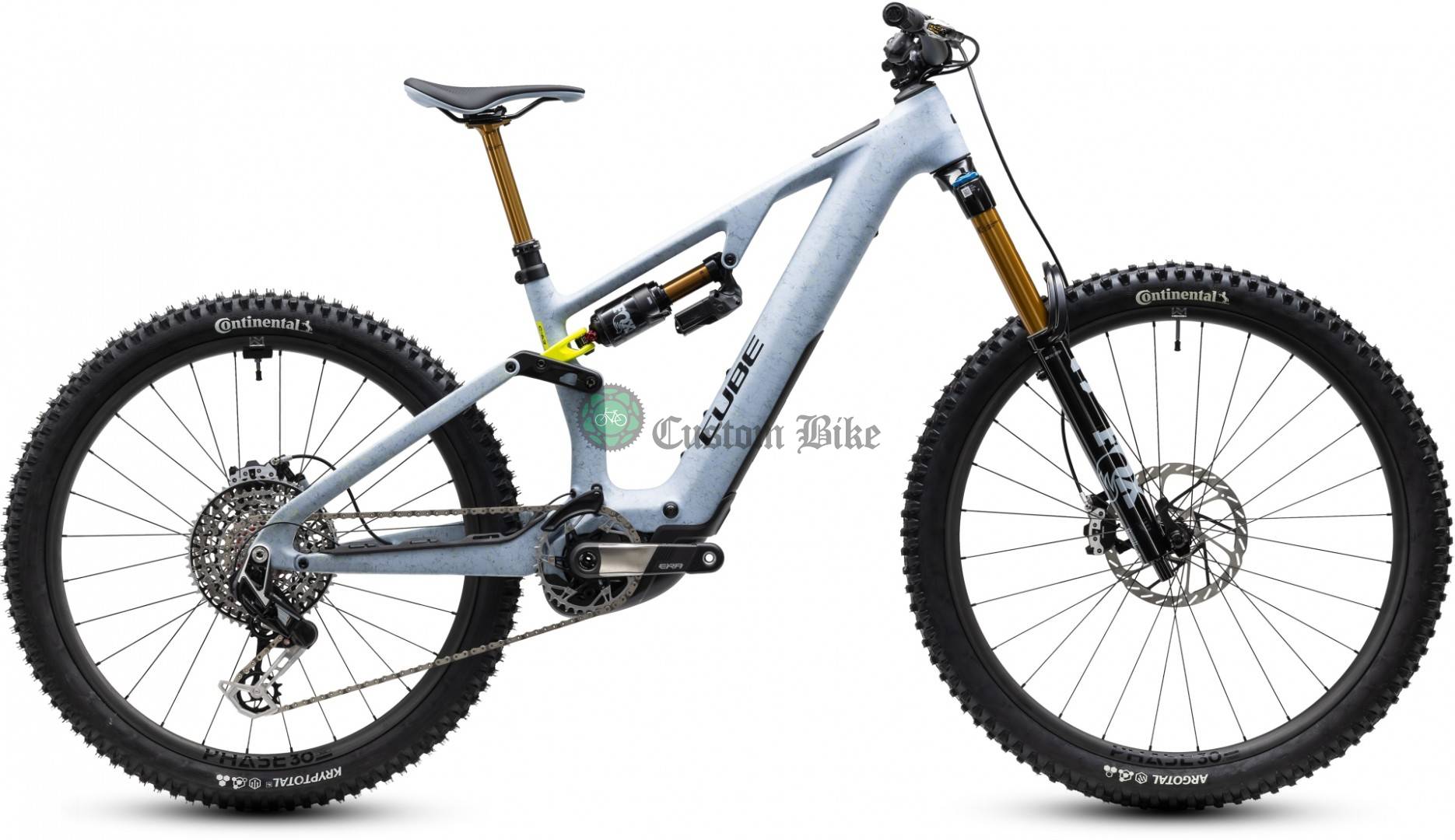

AMS HYBRID 177 C:62 SUPER TM 600X 2027 1106900

frame

C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing

size

S, M, L, XL

Suspension

Suspension fork

Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm

shock

Fox Float X2 Live Valve Neo Factory, 230x65mm, High/Low Speed Rebound, Low Speed Compression, Firm Mode Adjust, Kashima Coated

shock hardware

Front: 30x8mm, Rear: w/o DU-Bushing 15 mm

E-bike system

drive unit

Bosch Drive Unit Performance Line CX-R max. 120Nm (BDU38)

Remote

Bosch Mini Remote

battery

Bosch PowerTube 600

display

Bosch Kiox 400C

charger

Bosch 4A

Drivetrain & brakes

brake system

Sram Maven Ultimate, Hydr. Disc Brake (200/200)

rear derailleur

Sram XX Eagle AXS™ Transmission, 12-Speed

shifters

Sram AXS™ Pod Ultimate Controller

crankset

Race Face ERA E-MTB, 36T

cassette

Sram XS-1297, 10-52T

chain

Sram XX Eagle Transmission

chain guide

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Cockpit

headset

Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment

Stem

Race Face Turbine R 35

handlebar

Race Face ERA 35

grips

ACID Disrupt

Wheels

wheelset

Newmen Phase 30 base/strong, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready

front tyre

Conti Argotal, Enduro SuperSoft, Tubeless Ready, 2.4

rear tyre

Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4

Finishing kit

saddle

ACID Venec EMTB Trail 140

seat post

Fox Transfer Factory 31.6mm, Kashima Coated

pedals

ACID PP MTB

extras

Schwalbe Aerothan™ Inner Tubes w/ ClikValve

Product information

colour

artichoke´n´lime

weight

21,3 kg

Art. No

1106900
