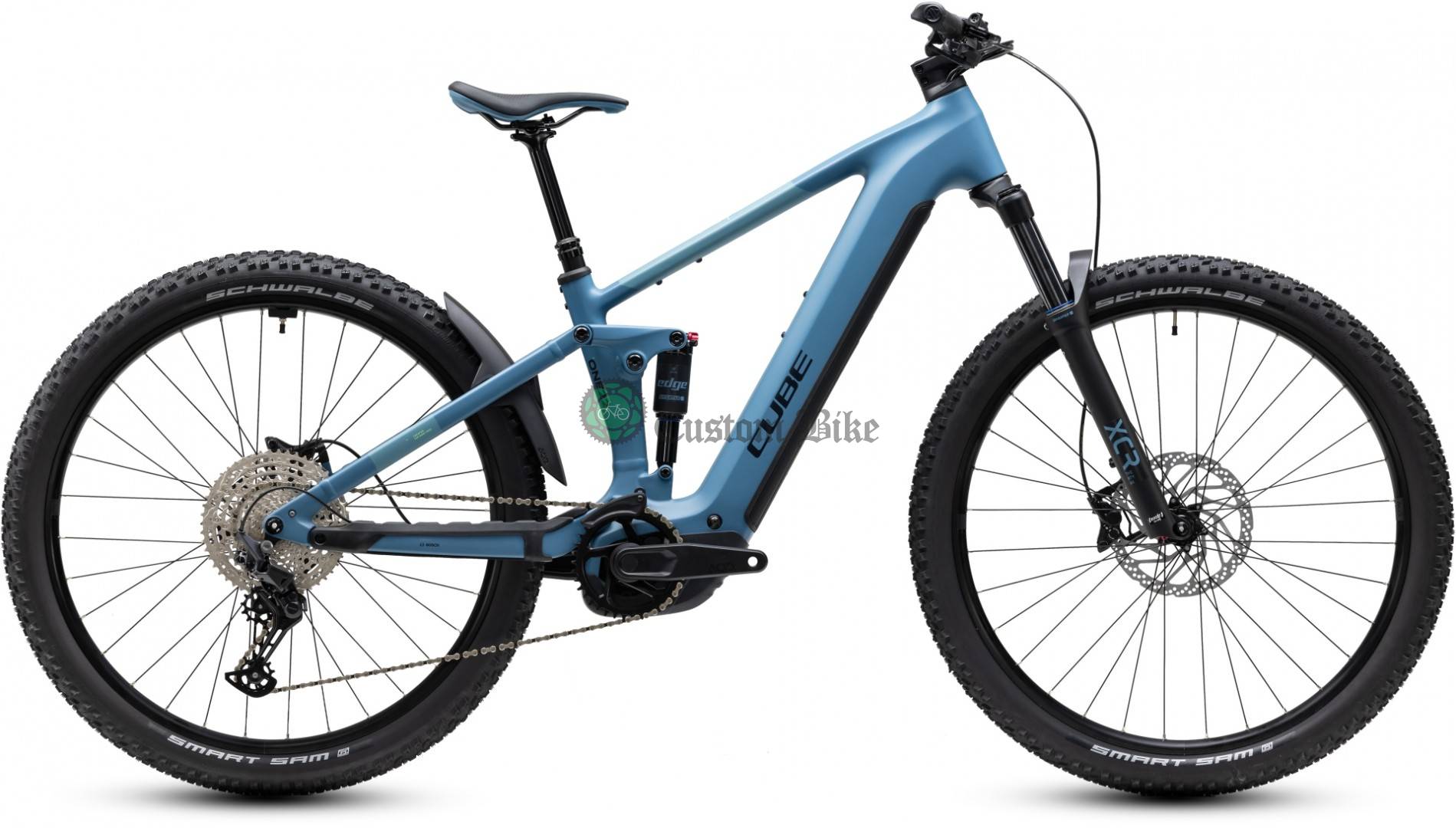

STEREO HYBRID ONE22 PRO 800 2027 1101210

frame

Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp

size

Size Split: 27.5: S // 29: M, L, XL

Suspension

Suspension fork

SR Suntour XCR36X 2CR Air, Tapered, 15x110mm, 120mm

shock

SR Suntour EdgeX R 185x52.5mm, Rebound Adjust, Trunnion Mount

shock hardware

Top: 54mm Trunnion Mount, Bottom: 22.2x8mm

E-bike system

drive unit

Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)

Remote

Bosch Purion 200 with Integrated Display

battery

Bosch PowerTube 800

charger

Bosch 2A

Drivetrain & brakes

brake system

Shimano BR-MT420, Hydr. Disc Brake (203/203)

rear derailleur

Shimano Deore RD-M6200-SGS, ShadowPlus, 12-Speed

shifters

Shimano Deore SL-M6210-IR, Direct Attach, Single Click

crankset

ACID MTB Hybrid Pro, 38T

cassette

Shimano Deore CS-M6200, 10-51T

chain

KMC e12

chain guide

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Cockpit

headset

Acros AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface

Stem

CUBE Performance Stem E-MTB 35, FPI-Link

handlebar

CUBE Rise Trail Bar 35

grips

ACID Hybrid Perform

Wheels

wheelset

ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready

tyres

Schwalbe Smart Sam, Active, 2.6

Finishing kit

saddle

ACID Venec EMTB Plus 145

seat post

CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

pedals

ACID PP MTB

Product information

colour

bluesapphire´n´blue

weight

26,7 kg

Art. No

1101210
