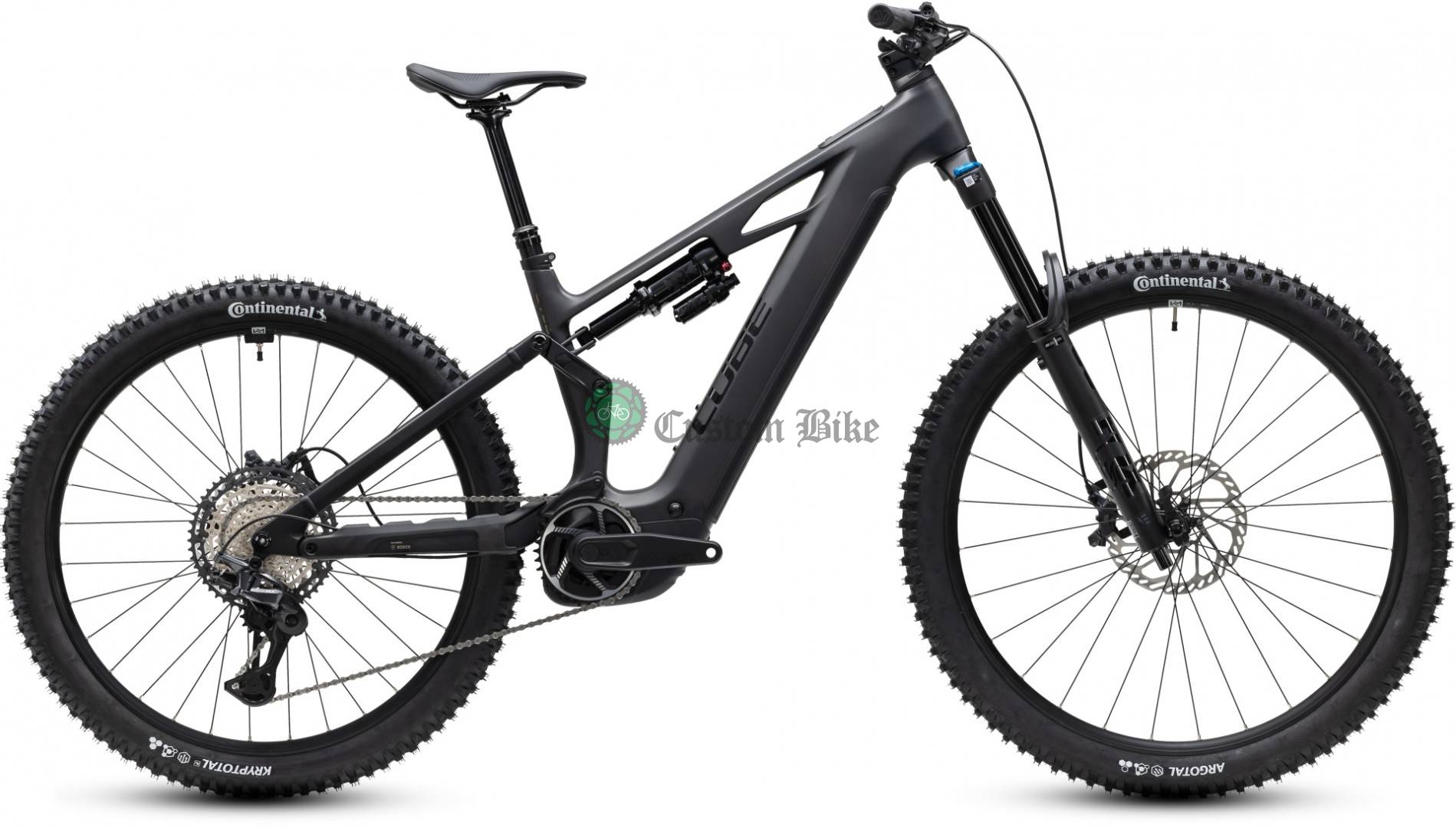

STEREO HYBRID ONE77 HPC SLX 800 2027 1104600

frame

C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

size

S, M, L, XL

Suspension

Suspension fork

Fox 38 Float Performance GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm

shock

Fox Float X Performance, 230x65mm, Adjustable LSR w/ 2-Pos. Lever

shock hardware

Front: 30x8mm, Rear: DU-Bushing 12.7mm

E-bike system

drive unit

Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)

Remote

Bosch Mini Remote

battery

Bosch PowerTube 800

display

Bosch Kiox 400C

charger

Bosch 4A

Drivetrain & brakes

brake system

Shimano XT BR-M8220, Hydr. Disc Brake (200/200)

rear derailleur

Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed

shifters

Shimano Deore XT SL-M8210-IR, Direct Attach, Single Click

crankset

ACID MTB Hybrid Pro, 36T

cassette

Shimano XT CS-M8200, 10-51T

chain

Shimano XT CN-M8100

chain guide

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Cockpit

headset

Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface

Stem

CUBE Performance Stem E-MTB 35, FPI-Link

handlebar

CUBE Rise Trail Bar 35 VariGrip System

grips

ACID Endure VariGrip System

Wheels

wheelset

Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready

front tyre

Conti Argotal, Enduro Soft, Tubeless Ready, 2.4

rear tyre

Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4

Finishing kit

saddle

ACID Venec EMTB Trail 140

seat post

CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

pedals

ACID PP MTB

Product information

colour

blackline

weight

24,5 kg

Art. No

1104600
