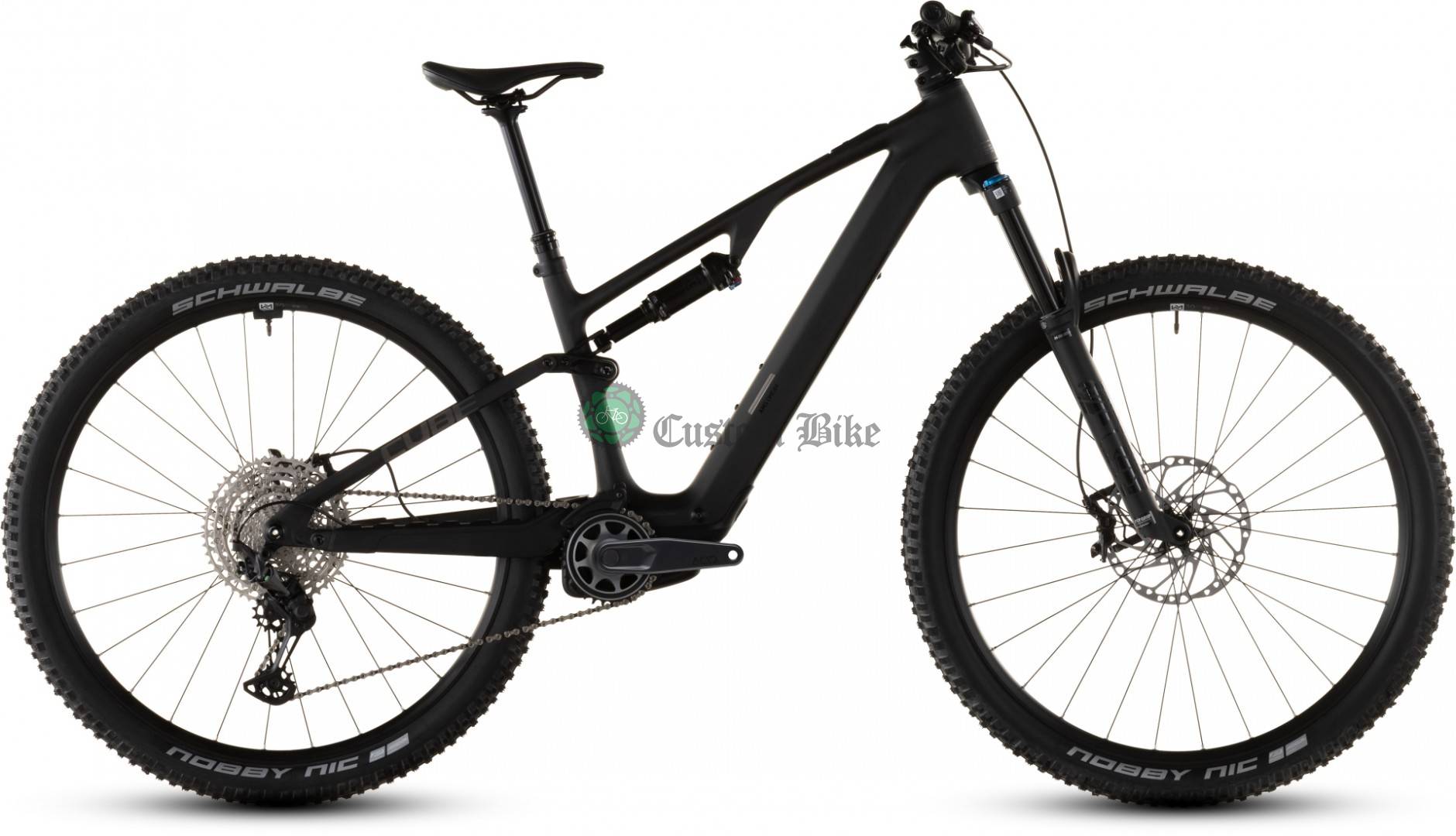

AMS HYBRID ONE44 C:62 PRO 400X 2027 104020

frame

C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link. Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing

size

S, M, L, XL

Suspension

Suspension fork

Fox 34 Float Rhythm GRIP, Tapered, 15x110mm, 140mm

shock

Fox Float Rhythm RC, 210x55mm, Adjustable LSR w/ 2-Pos. Lever

shock hardware

Front: 30x8mm, Rear: DU-Bushing 12.7mm

E-bike system

drive unit

Bosch Drive Unit Performance SX max. 60Nm (BDU31)

Remote

Bosch System Control, incl. Mini Remote

battery

Bosch CompactTube 400

charger

Bosch 2A

Drivetrain & brakes

brake system

Shimano XT BR-M8120, Hydr. Disc Brake (203/180)

rear derailleur

Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed

shifters

Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus

crankset

ACID MTB Hybrid Pro, 32T

cassette

Shimano Deore CS-M6100, 10-51T

chain

KMC e12

chain guide

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Cockpit

headset

Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment

Stem

CUBE Stereo Stem w/ Cable Routing

handlebar

Newmen Evolution SL 318.25, 780mm

grips

ACID Disrupt, Soft Compound

Wheels

wheelset

Newmen Performance 30 base/base, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready

tyres

Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.4

Finishing kit

saddle

ACID Venec EMTB Trail 140

seat post

CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

pedals

ACID PP MTB

Product information

colour

blackline

weight

18,1 kg

Art. No

104020
